SINGLE ARM HYDRAULIC PRESS
Yz41 Series

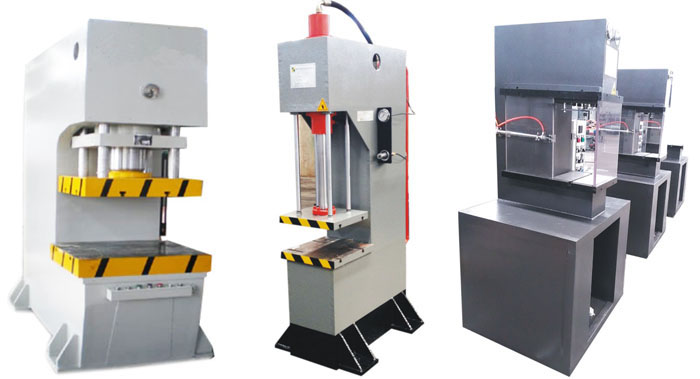

MACHINE APPEARANCE
PRESSING PROCESS DIAGRAM
DATA SHEET
|
Parameter
|
unit
|
1T
|
1.6T
|
2.5T
|
4T
|
6.3T
|
10T
|
16T
|
25T
|
40T
|
63T
|
100T
|
160T
|
250T
|
|
Nominal Force
|
KN
|
10
|
16
|
25
|
40
|
63
|
100
|
160
|
250
|
400
|
630
|
1000
|
1600
|
2500
|
|
Max working pressure of liquid
|
MPA
|
5.5
|
5.1
|
5.5
|
5.6
|
6.28
|
8.1
|
13
|
20.3
|
22.6
|
16.5
|
26.5
|
25
|
25
|
|
Max. daylight
|
mm
|
300
|
300
|
350
|
390
|
400
|
500
|
500
|
550
|
600
|
630
|
800
|
1000
|
1000
|
|
Max. stroke
|
mm
|
120
|
160
|
160
|
200
|
250
|
300
|
350
|
350
|
400
|
500
|
500
|
500
|
500
|
|
Slider speed
|
Down
|
mm/s
|
60
|
45
|
50
|
50
|
50
|
50
|
50
|
50
|
50
|
50
|
36
|
24
|
23
|
|
Return
|
mm/s
|
82
|
90
|
110
|
110
|
100
|
100
|
115
|
115
|
110
|
98
|
98
|
65
|
65
|
|
Throat deep
|
mm
|
100
|
100
|
100
|
100
|
100
|
120
|
120
|
150
|
150
|
175
|
200
|
220
|
250
|
|
Table size
|
front-back
|
mm
|
200
|
200
|
200
|
200
|
200
|
250
|
250
|
300
|
300
|
350
|
400
|
450
|
500
|
|
left-right
|
mm
|
300
|
300
|
300
|
300
|
300
|
300
|
350
|
400
|
400
|
500
|
600
|
600
|
700
|
|
The workbench high from the ground
|
mm
|
desk type
|
700
|
700
|
710
|
700
|
700
|
710
|
710
|
650
|
650
|
730
|
750
|
710
|
|
Blanking hole diameter
|
mm
|
|
70
|
70
|
70
|
80
|
80
|
100
|
100
|
100
|
140
|
140
|
200
|
200
|
|
Motor power
|
|
kw
|
1.1
|
1.5
|
1.5
|
1.5
|
2.2
|
4
|
4
|
4
|
5.5
|
7.5
|
8.5
|
11
|
15
|
|
Overall dimensions
|
Front-back
|
mm
|
500
|
500
|
500
|
500
|
500
|
650
|
650
|
800
|
900
|
1200
|
1300
|
1300
|
1400
|
|
Left-right
|
mm
|
400
|
400
|
400
|
400
|
400
|
500
|
550
|
600
|
600
|
700
|
900
|
900
|
1000
|
|
Height
|
mm
|
1450
|
1450
|
1450
|
1600
|
1600
|
1800
|
1900
|
2200
|
2500
|
2500
|
2500
|
2900
|
3200
|
